2 Post 5 Ton Automatic Lock Lift with 3 stage arms

SKU: EL250

0.00 incl. VAT
0.00 excl. VAT

2 Post 5 Ton Automatic Lock Li...

0.00 incl. VAT
0.00 excl. VAT

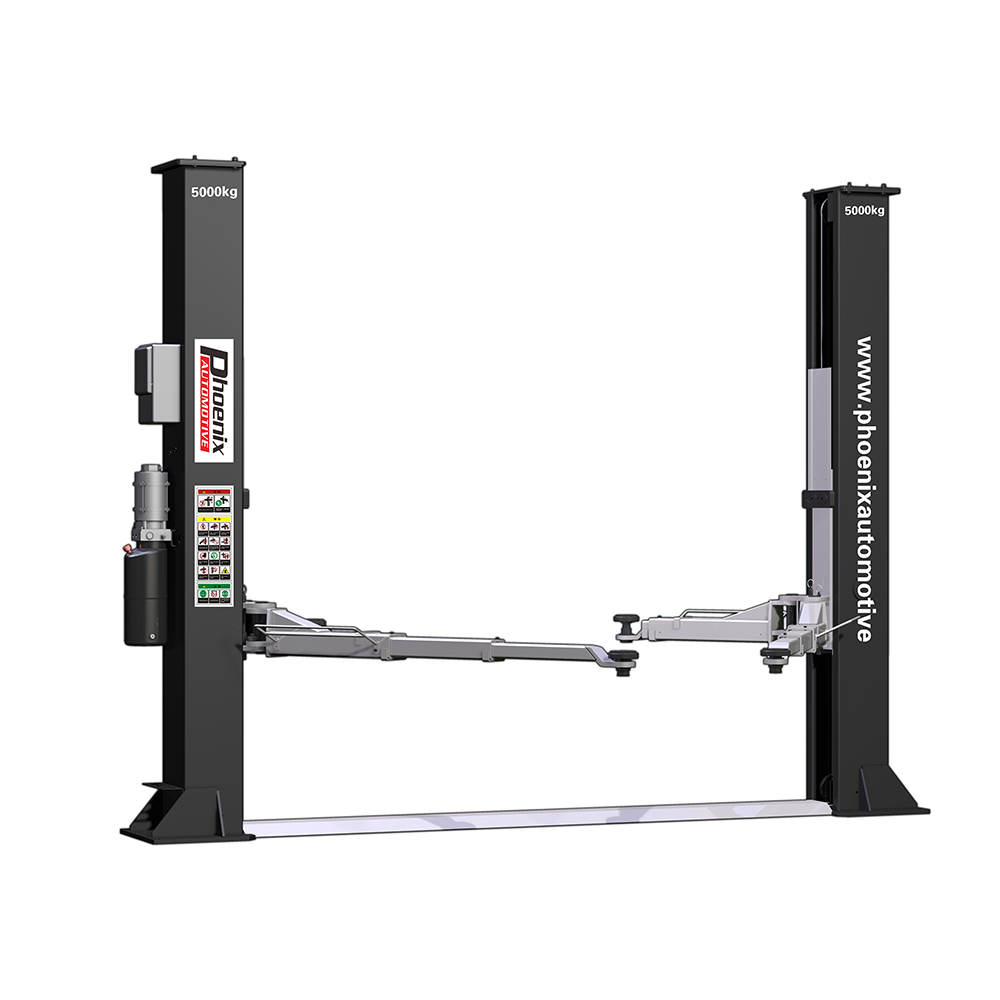

The  EL 250 two-column lift is an automatic electro-hydraulic lift. The lift, thanks to a very large range of arms and a 5-tonne lifting capacity, is dedicated to servicing vans and SUVs. Free access to the wheels and chassis makes it a universal tool for work in the workshop.

Key information about the lift:

  • arms with a very long reach – 1,800 mm
  • automatic lift height lock controlled by electromagnets
  • cylinder movement synchronization through a steel cable routed through the bottom cover
  • It has special 80 mm and 120 mm extension adapters as standard, which facilitate lifting off-road vehicles and delivery trucks

The lift is designed for installation in covered, closed rooms without any obstacles. The working temperature in ranges from -10 ° C to 40 ° C.

Installation requirements:

Variant no.1

  • The substrate with the strength of min. C20 / 25 and thicknesses of min. 150 mm
  • Mounting surface: 1.5 m from the anchor point

Variant no.2

  • The substrate with the strength of min. C20 / 25 and thicknesses of min. 300 mm
  • Baseplate 4500 x 2000 mm

Specification

Lifting capacity 5,000 kg
The hight of raising 1,900 mm
Minimum height 120 mm
Shoulder length 860 – 1,800 mm
The height of the columns 2,848 mm
The width between the columns 2,810 mm
Maximum vehicle width 2,500 mm
Overall width 3,650 mm
Lifting time 60 pp
Electric supply 400V / 50 Hz
Power 2.6 kW
